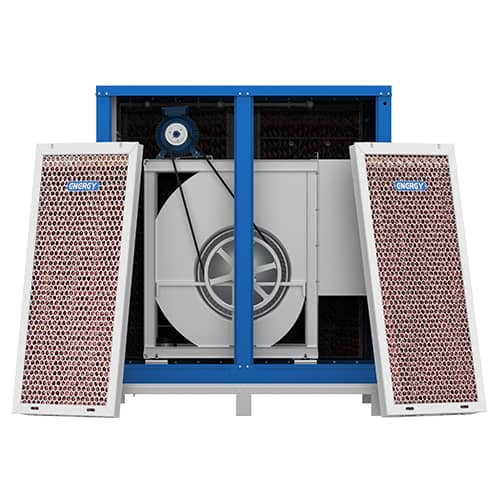

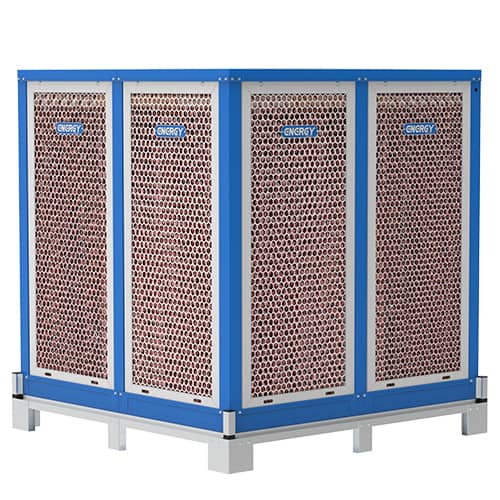

EC 2500 cellulose industrial cooler

3,762,781,000 $

1 in stock

Description

  • CE certified with number 8013820084080
  • Technically and economically suitable cooling solution compared to air washer
  • High-quality and efficient centrifugal fan to overcome pressure drop caused by air duct
  • Electromotor with copper coil and cooler performance with high thermal class (IP54)
  • 3-phase and single-speed
  • Equipped with thermal switch to protect the device against power fluctuations
  • Fan speed adjustment by installing an inverter (if ordered)
  • Up to 30% cooler than a conventional water cooler throughout the season
  • Self-standing cellulose pad compared to straw and stable cooling efficiency
  • Reduced transmission of harmful respiratory bacteria
  • Long life of cellulose pad (with Typical water hardness 3 to 5 years)
  • Ability to disassemble and reassemble at the installation site
  • Equipped with an aluminum base for easy installation and transportation of the device
  • Has a durable tarpaulin cover to protect the device in cold seasons
  • Using thicker galvanized sheet for high strength and durability and less vibration

Technical specifications

Evaporation EfficiencyAeration RateAir projectile rate
Technical Specifications Unit EC2500
cooling system evaporative
Cellulose Pad Thickness Centimeters 10
% 83
Cubic Feet Per Minute (Cubic Meters Per Hour) 14700(25000)
Coolable surface (approximate) Square meter Consult with sales engineer
Electromotor power Horsepower(kW) 7/5(5/5)
Specifications Electricity Phase, Voltage, Ampere 10,380,3
Product weight+ (water weight) Kilograms 400+320
Dimensions (width*length*height) Centimeters 188*177*177
Maximum channel length meters 30
meters
